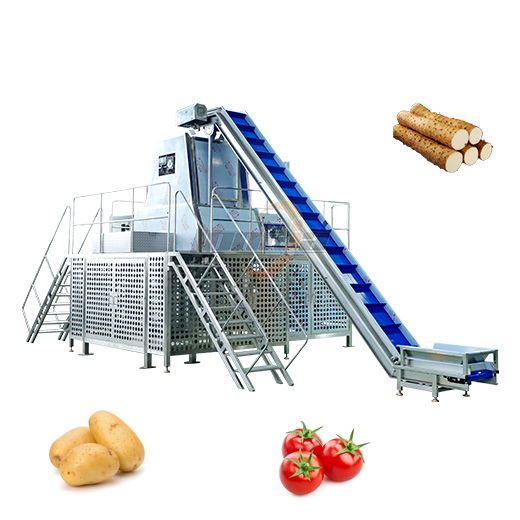

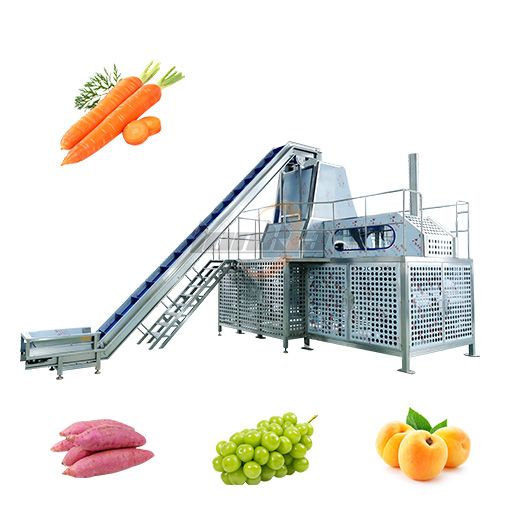

Our Steam Peeling Machine is engineered for high-efficiency peeling of a wide variety of fruits and vegetables. It employs advanced steam peeling technology combined with an expanded steam peeling tank and a high-precision weighing hopper to efficient and accurate, uniform peeling results with minimal product loss. This machine is ideal for large-scale operations, providing a reliable solution to prepare raw materials for further processing into canned or packaged foods.
Key Features
- High Efficiency PeelingAchieves a significant reduction in peel loss—from up to 30% in traditional methods down to only 4-7%，ensuring maximum yield. Processes 1-10 tons/hour, meeting the demands of large-scale production.

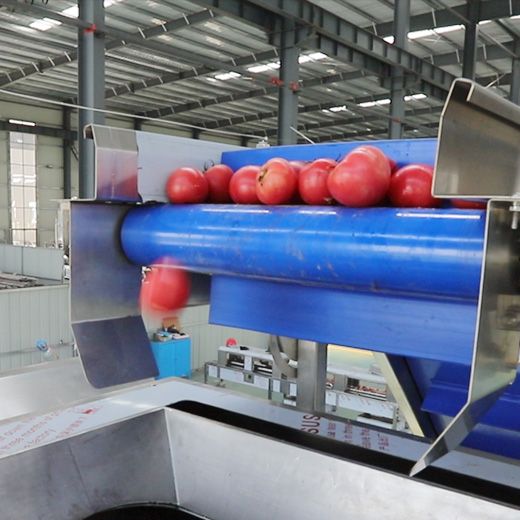

- Uniform Peeling QualityUtilizes a rotary pressure tank where materials tumble continuously, ensuring all surfaces receive even steam exposure for uniform peeling. Optional integration with a roller cleaning machine further removes any residual peel for a smooth final product.
- Energy Saving & Heat RecoveryFeatures a controllable steam management system that optimizes steam usage and reduces overall energy consumption. Incorporates a heat recovery unit to reclaim energy from exhausted steam, enhancing efficiency and lowering operational costs.
- Low Maintenance & Durable ConstructionDesigned with a robust, rational structure that minimizes maintenance requirements and extends service life. Equipped with a steam accumulator to provide a stable steam supply, reducing the peak load on the steam generator.

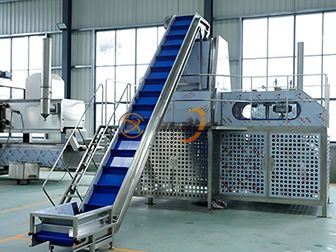

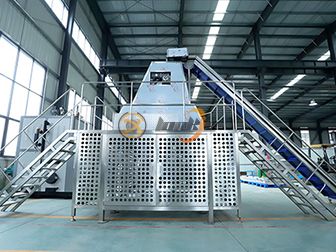

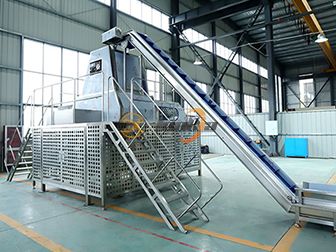

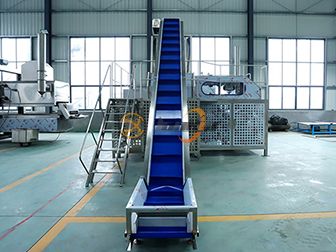

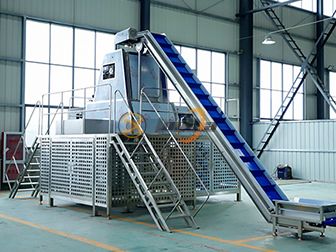

Product Gallery
Applications

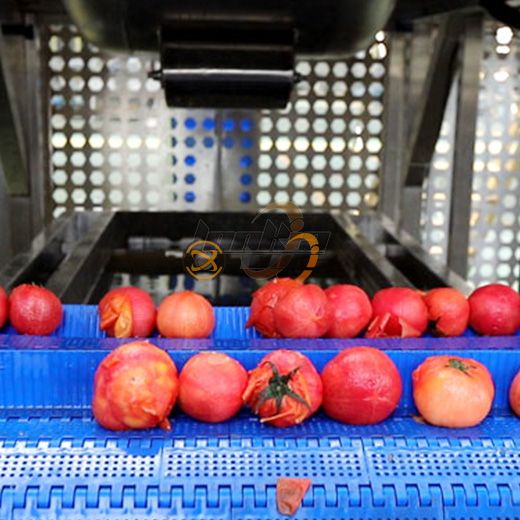

Tomato
Yellow Peach
Apple
Pear
Technical Specifications
Pressure tank volume | 0.3 m³ (material:16MnR) |
Steam working pressure | 1.2~1.5MPa |
Pressure tank working medium | Saturated Steam |
Pressure tank temperature | 250℃ |
Pressure tank speed | 8rpm |
Capacity | 1-20T/H(raw material) |
Each feed capacity | 100-500kg |
Total power | 6.2kw |
Exhaust tank volume | 1 m³(material: Q235) |
Compressed air | pressure≤7Mpa, consumption:0.2m³ |
Size | L3800*W2700*H4600mm |
Weight | 3500kg |
Note: Technical specifications may change without notice due to ongoing technological advancements.
